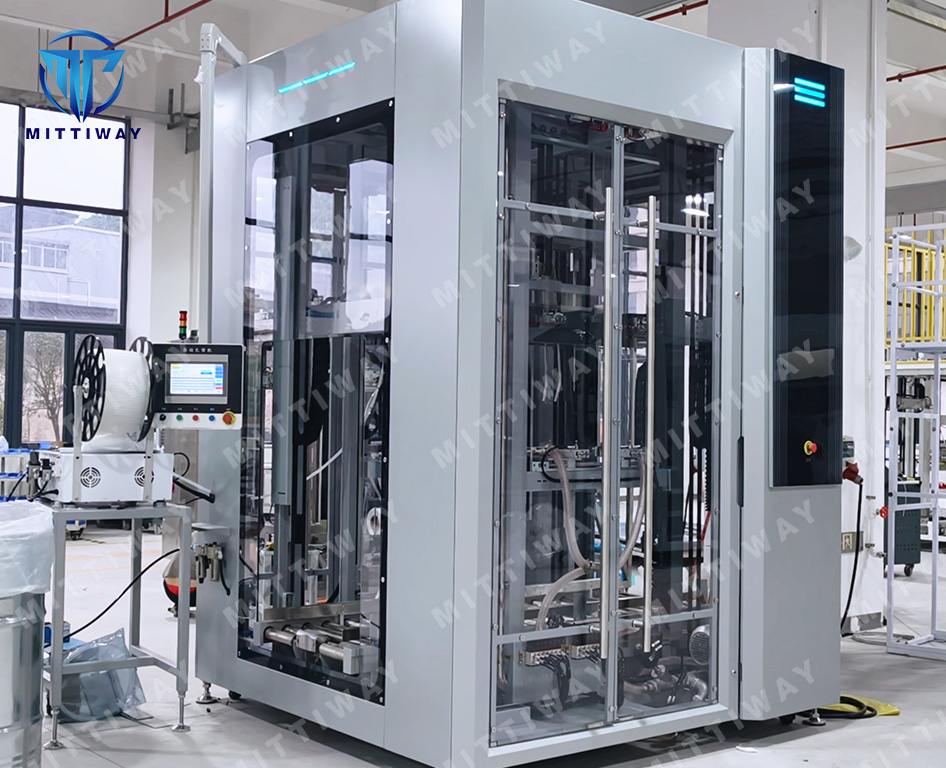

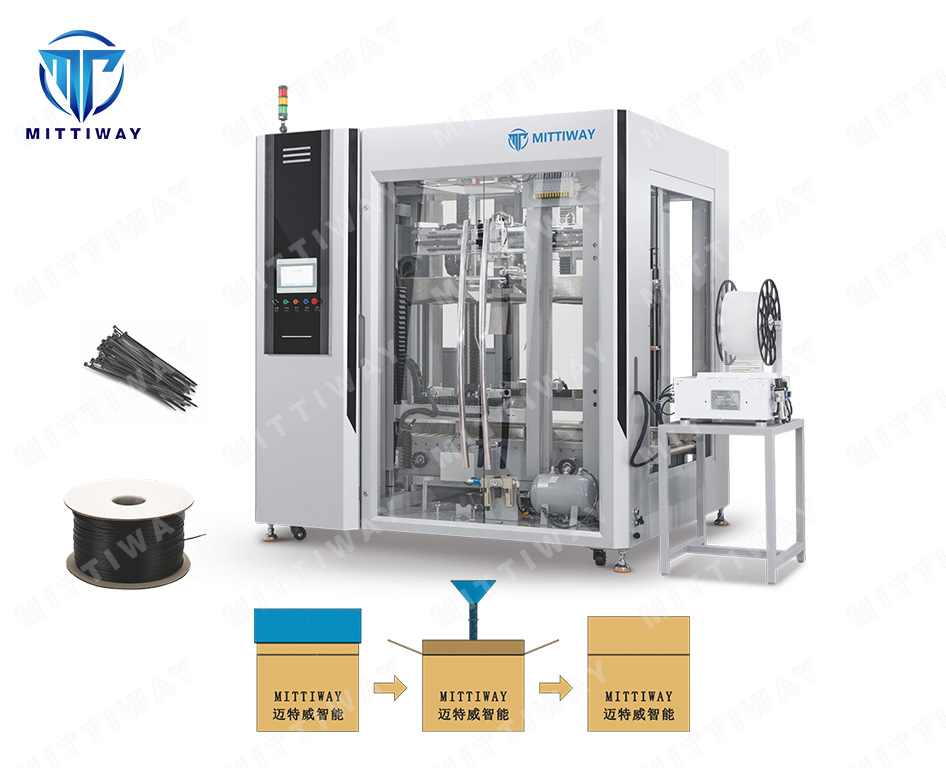

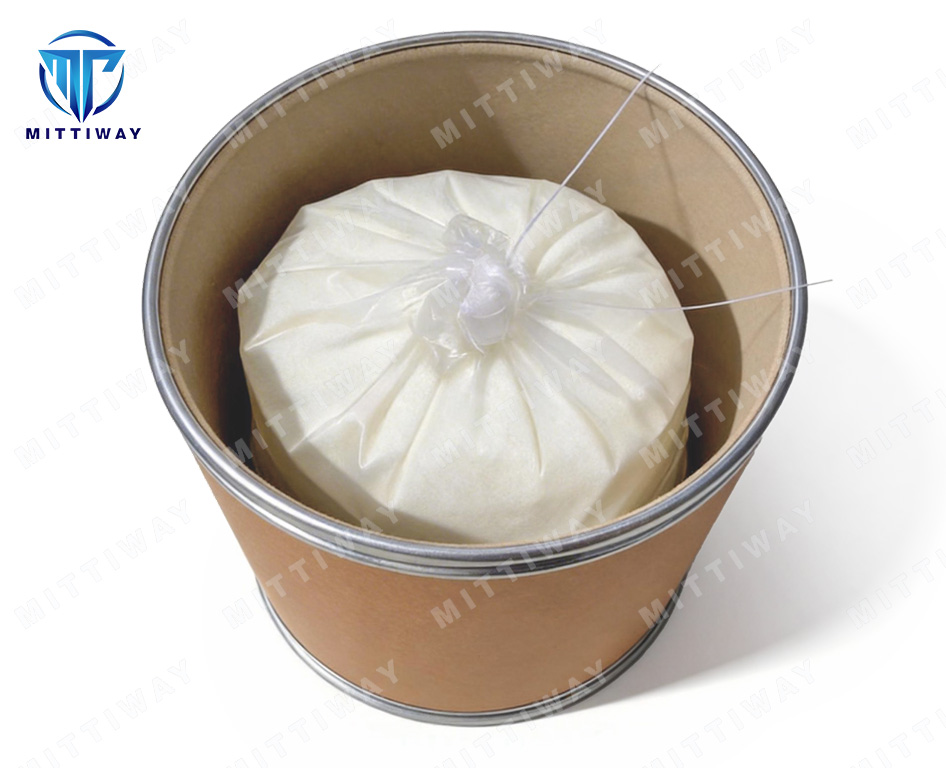

MTW-TZ50 automatic bag tying machine is an end-of-line packaging device developed by MITTIWAY for liner bag closing. It automatically completes bag lifting, folding, pressing and tying in one synchronous cycle. Compatible with iron wire and nylon straps for reverse strapping, it tightly seals plastic inner bags inside cartons. The machine features easy operation, long service life, high safety and low failure rate. It can run standalone or integrate with auto bag inserters to build a full automatic packaging line. Widely applied in chemicals, particle powder, waterproof materials, sauce, daily necessities and cosmetics industries.
Technical Parameters
Model | MTW-TZ50 |
Comveyor speed | 200-300 Pcs/H |
Bag size | L300-500*W300-400*H60-100mm |
Power supply | 380V、50Hz、5Kw |
Air pressure | 600NL/min、0.5-0.6Mpa |
Discharge table height | 600mm |
Machine dimensions | L2000*W1700*H2200mm |
Machine weight | 1160kg |
Synchronized working structure: Electric & pneumatic integrated design, finish bag lifting, sealing, folding and pressing at the same time.
Dual strapping material support: Works with iron wire and nylon straps, reverse tying for tight sealing against leakage.
Quick size change: Continuous production for same carton size. Manual setting takes only 10-15 mins when switching packaging dimensions.
Reliable & low failure rate: Stable continuous running, safe operation and less downtime.
Flexible integration: Standalone available, easy to connect with upstream bag inserting machine for full automatic packaging line.
Chemicals, particle powder, waterproof material, sauce, daily necessities, cosmetics and other carton inner bag packaging.
Product filling into carton → Liner bag lifting & sorting → Auto fold & press bag → Strapping & tying → Carton packaging finished
