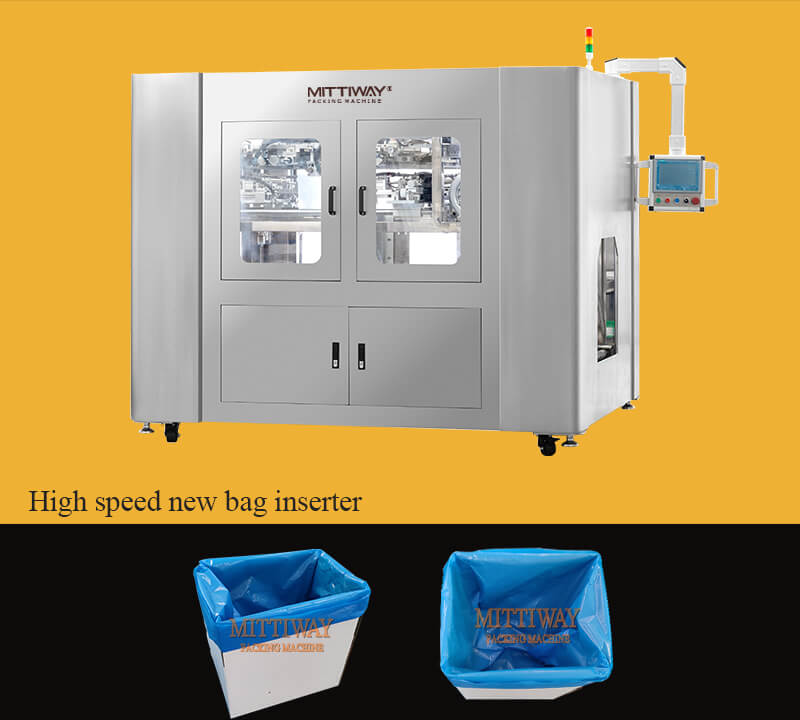

New bag in box inserter

MTW-T50S is an automatic stainless steel bag inserting packaging machine ,which adopts M-type PE film as the main consuming packing material. It can make bag and insert the bag automatically into the carton,plastic jars and any other containers. The bag inserter machine has small-footprint and simple structure, which is easily operated and easy maintenance. The poly bag inserting machine is widely applied on oil, grease, margarine,flour, the other food packaging industry and chemical material. The packing is high efficient and good-looking for products.

Configuration:

1. PLC :Panasonic/Mitsubishi

2.Touch panel : Weiview

3. Sensor:German Sick

4. Intermediate Relay : Japan OMRON

5. Temperature Controller:OMRONC

6. Contactor: SCHNEIDER

7. Pneumatic Parts: Airtac

8. Servo motor: Japan Panasonic/Mitsubishi

Model

MTW-T50S

Stainless steel

Machine dimension

L2200W1800H2000mm


Packing size

L:200~500mm W:200~400mm H:200~300mm


Width of the film

460~800mm (Sum the Length of the carton*2 +Width of the carton*2 +150mm)


Thickness of film

30/50/80/100 micron


Packing speed

4~7ctn/min


Net weight

1380kg


Power

5KW


Power supply

380V ,50/ 60Hz , 3Phase


Air pressure

8kg/cm³,0.6~0.8Mpa


Max current

10A
