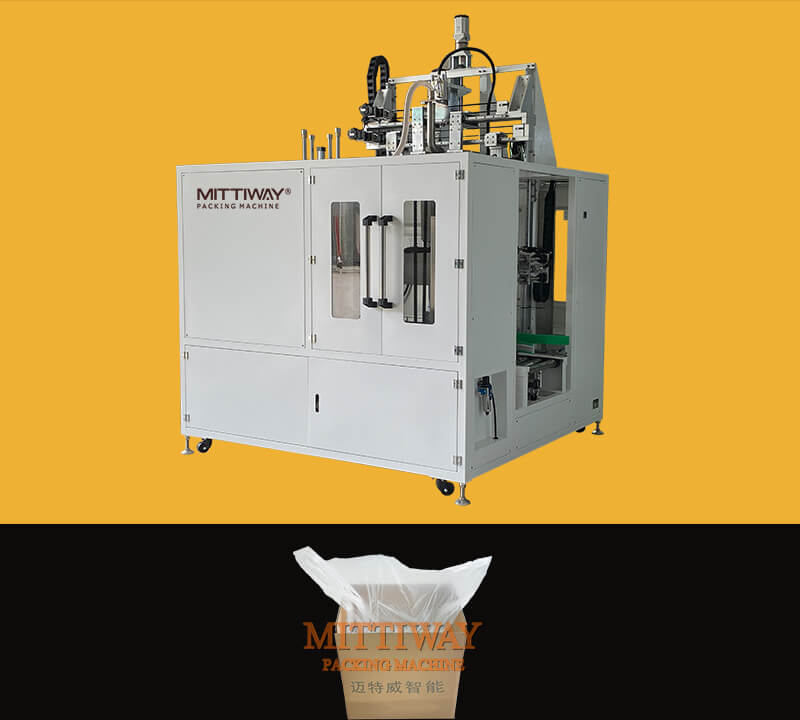

Bag decuffering sealing machine

MTW-TF50 is an automatic bag decuffering and sealing pack machine ,which adopts M-type PE film as the main consuming material. It can close and seal the bag automatically into the carton.The machine has small-footprint and simple structure, which is easily operated and easy maintenance. It is widely applied on oil, flour and food industry. The packing is high efficient and good-looking for products.



Configuration:

1. PLC :Panasonic/Mitsubishi

2.Touch panel : Weiview

3. Sensor:German Sick

4. Intermediate Relay : Japan OMRON

5. Temperature Controller:OMRONC

6. Contactor: SCHNEIDER

7. Pneumatic Parts: Airtac

8. Servo motor: Japan Panasonic/Mitsubishi


Model

MTW-TF50

carbon steel

Machine dimension

L2000W1700H2300mm


Packing size

L:200~500mm W:200~400mm H:200~300mm


Width of the film

460~800mm (Sum the Length of the carton*2 +Width of the carton*2 +150mm)


Thickness of film

30/50/80/100 micron


Packing speed

4~5ctn/min


Net weight

1380kg


Power

5KW


Power supply

380V ,50/ 60Hz , 3Phase


Air pressure

8kg/cm³,0.6~0.8Mpa


Max current

10A
